TOOLS FOR SLOTTING MACHINES
You are here:
  1. Home
  2. Shaping machine tools

ADAPTERS FOR SLOTTING MACHINES

Thanks to an adaptor, BT system is suitable for slotting machines as well.

Insert holders are fastened inside the adaptors by two M12x8 screws.

The timing pin (L4xL5) assures the perfect alignment between the holder and the machining axis.

There are two types of adapters:

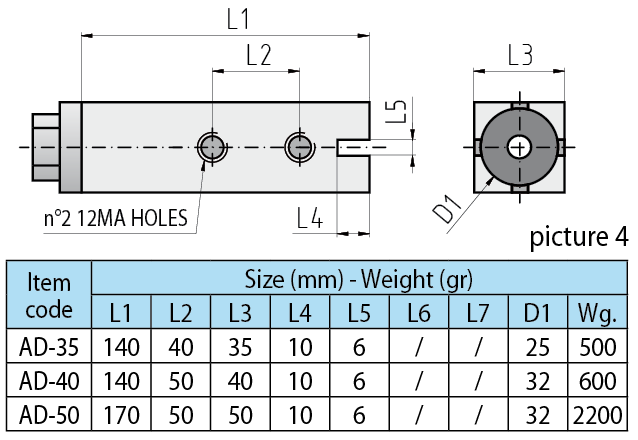

1) Square adaptor (AD) available in three sizes (L3) (fig.4)

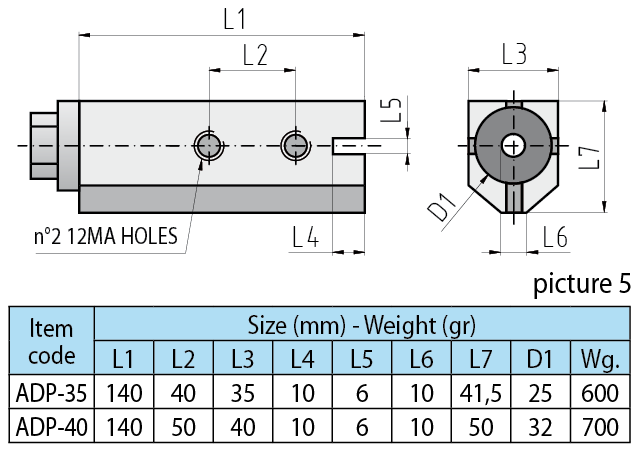

2) Prismatic adaptor (ADP) available in two sizes (L3) (fig.5)

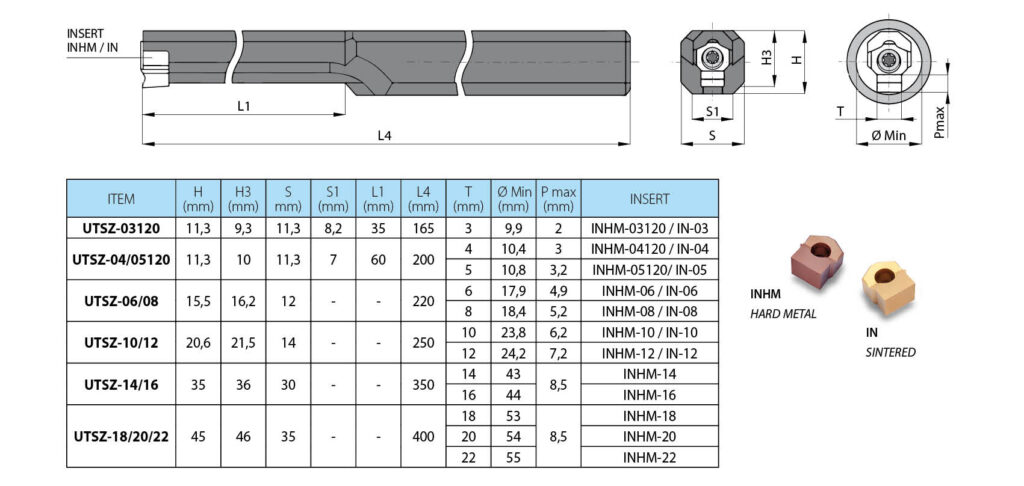

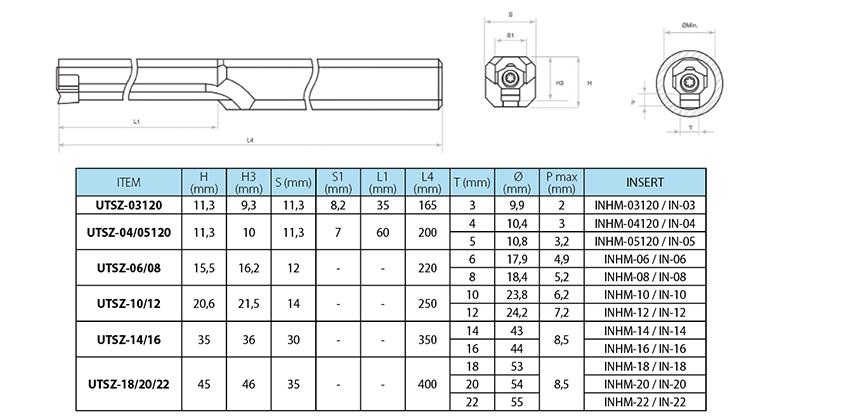

ONE CUTTING EDGE HOLDER FOR SLOTTING MACHINES

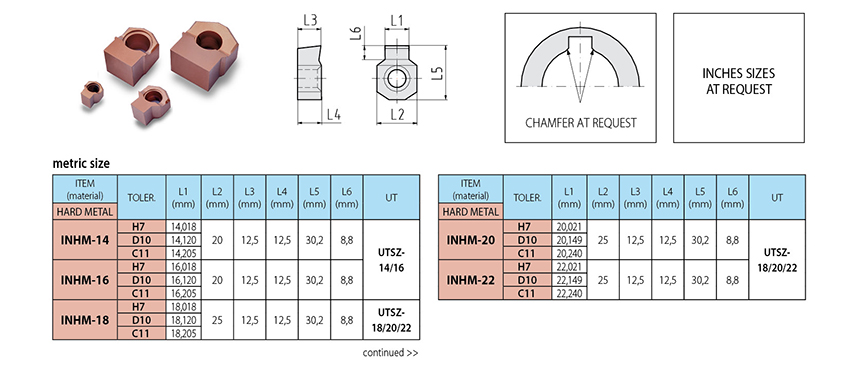

HARD METAL INSERTS

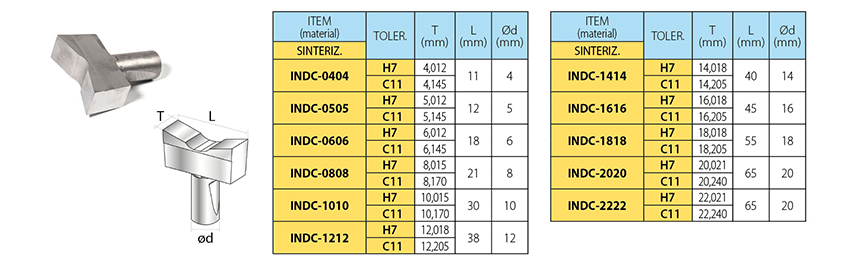

DOUBLE CUTTING EDGE INSERTS

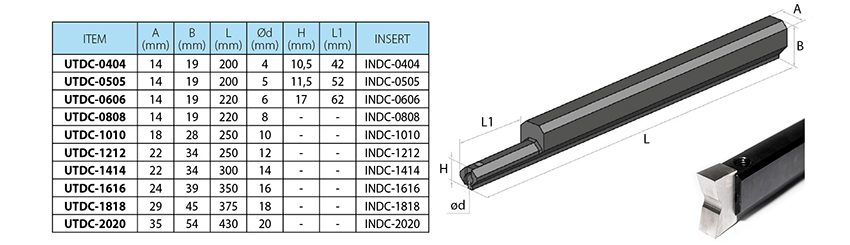

DOUBLE CUTTING EDGE HOLDER FOR SLOTTING MACHINES

Download the catalogue
